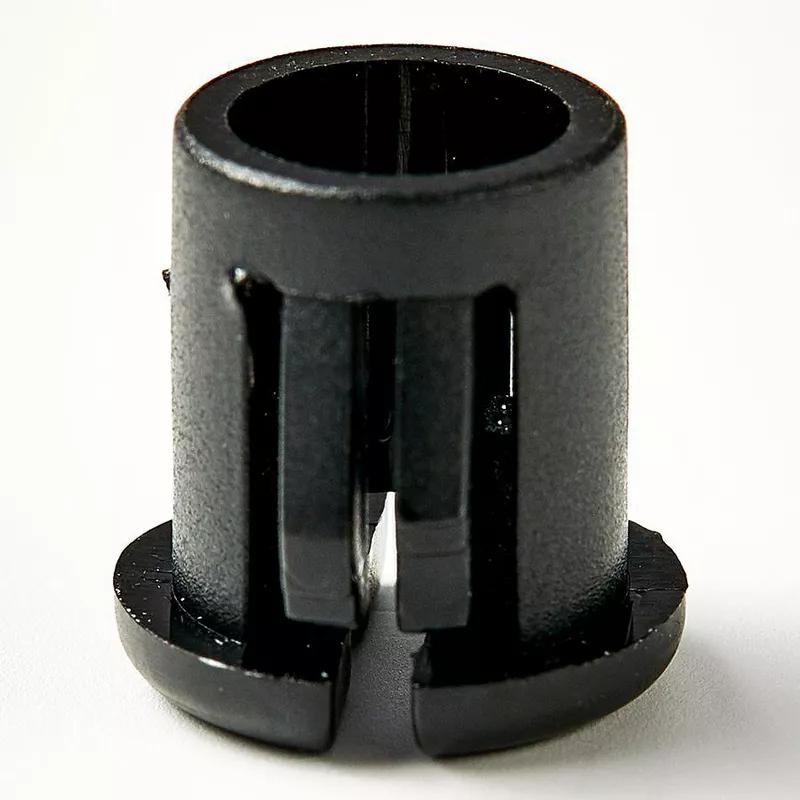

Essentra Snub Bushings Black Nylon 6/6 UL94 V-2 5.6 mm 12.1 mm 3.2 mm 11.1 mm 14.0 mm 12.1 mm 3.2 mm

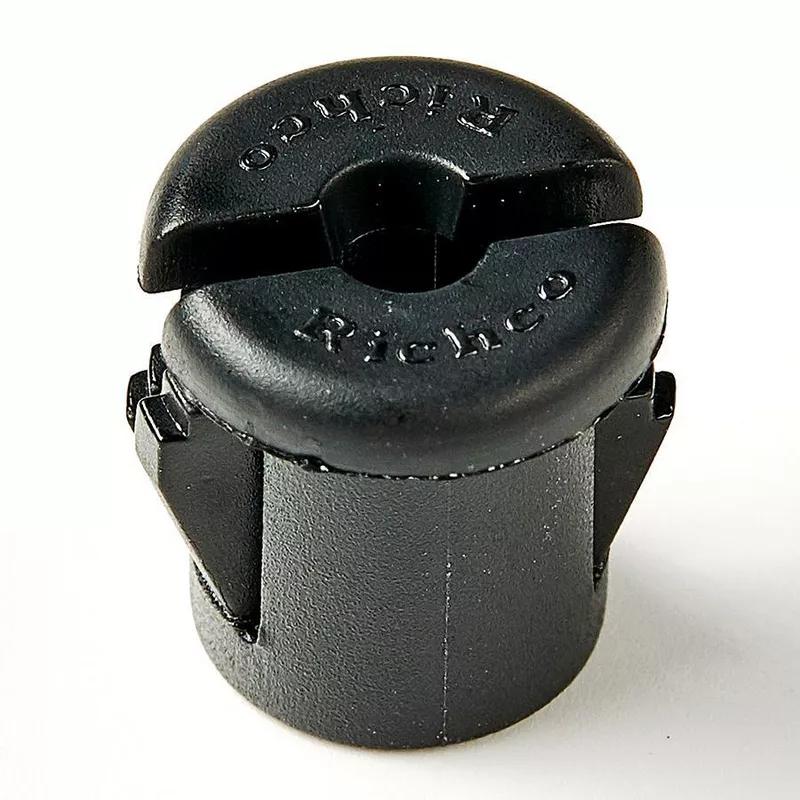

Essentra Snub Bushings Black Nylon 6/6 UL94 V-2 5.6 mm 12.1 mm 3.2 mm 11.1 mm 14.0 mm 12.1 mm 3.2 mm - Image 2

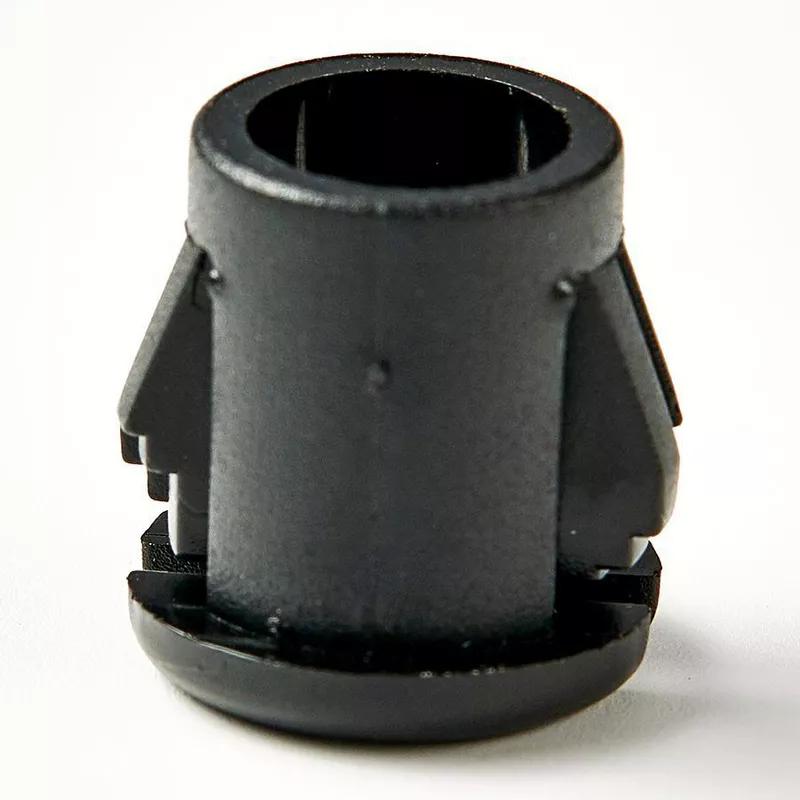

Essentra Snub Bushings Black Nylon 6/6 UL94 V-2 5.6 mm 12.1 mm 3.2 mm 11.1 mm 14.0 mm 12.1 mm 3.2 mm - Image 3
Essentra Snub Bushings Black Nylon 6/6 UL94 V-2 5.6 mm 12.1 mm 3.2 mm 11.1 mm 14.0 mm 12.1 mm 3.2 mm - Image 4
Essentra Snub Bushings Black Nylon 6/6 UL94 V-2 5.6 mm 12.1 mm 3.2 mm 11.1 mm 14.0 mm 12.1 mm 3.2 mm - Image 5
Essentra Snub Bushings Black Nylon 6/6 UL94 V-2 5.6 mm 12.1 mm 3.2 mm 11.1 mm 14.0 mm 12.1 mm 3.2 mm - Image 6
Essentra Snub Bushings Black Nylon 6/6 UL94 V-2 5.6 mm 12.1 mm 3.2 mm 11.1 mm 14.0 mm 12.1 mm 3.2 mm - Line drawing
See all 3 variants

Snub Bushings Black Nylon 6/6 UL94 V-2 5.6 mm 12.1 mm 3.2 mm 11.1 mm 14.0 mm 12.1 mm 3.2 mm

Snub Bushing opens to accept cables and closes firmly when installed into a hole. This bushing provides insulation and slight strain relief. Made from heat stabilised UL94 V2 rated material.

Essentra part number

10170175

Product Attributes

Material Flammability Standard

UL94 V-2

Colour

Black

Material

Nylon 6/6

Maximum Panel Thickness

3.2mm

Panel Thickness

3.2mm

Overall Height

12.1mm

Mounting Hole Diameter

11.1mm

Cable Diameter

5.6mm
