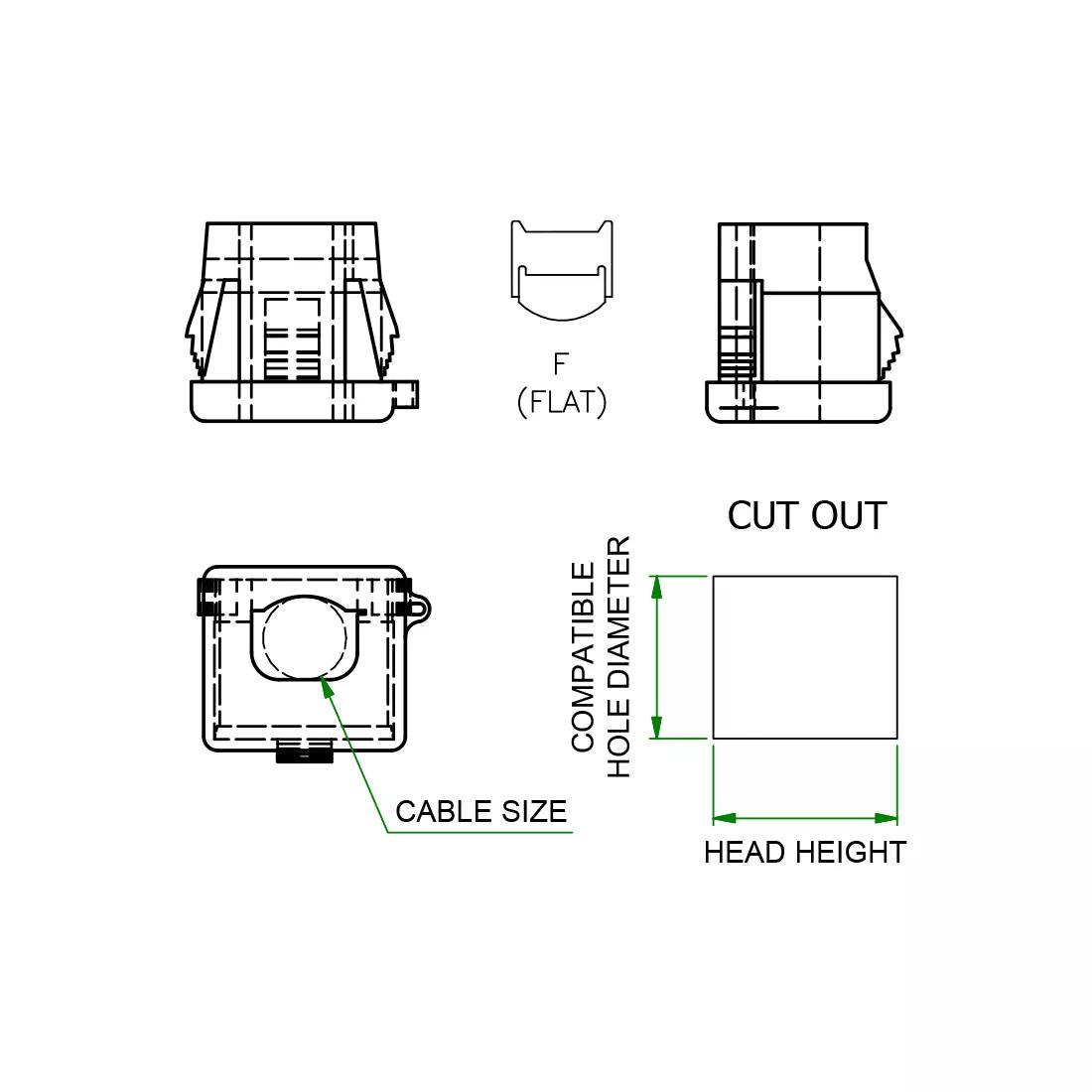

Strain Relief Bushing Flat Nylon 6/6 Black
A self-locking Strain Relief Bushing suitable for flat cables. Quick and easy to mount and the locking tab keeps cables and wires secure, and free from strain.
Essentra part number
10258644
Material Flammability Standard
UL94 V-2
Maximum Cable Bundle Diameter
7.6mm
Colour
Black
Compatible Cable Shape
Flat
Material
Nylon 6/6
Minimum Cable Bundle Diameter
3.0mm
Maximum Panel Thickness
2.5mm
Mounting Hole Height
11.5mm
Panel Thickness
2.5mm
Mounting Hole Length
13.0mm
Type
Self Lock
