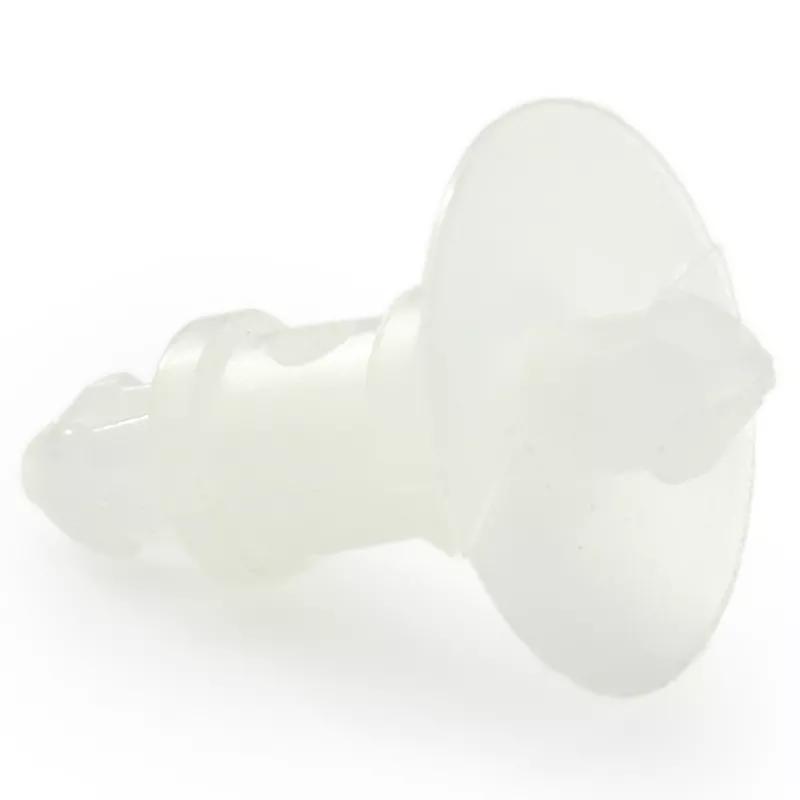

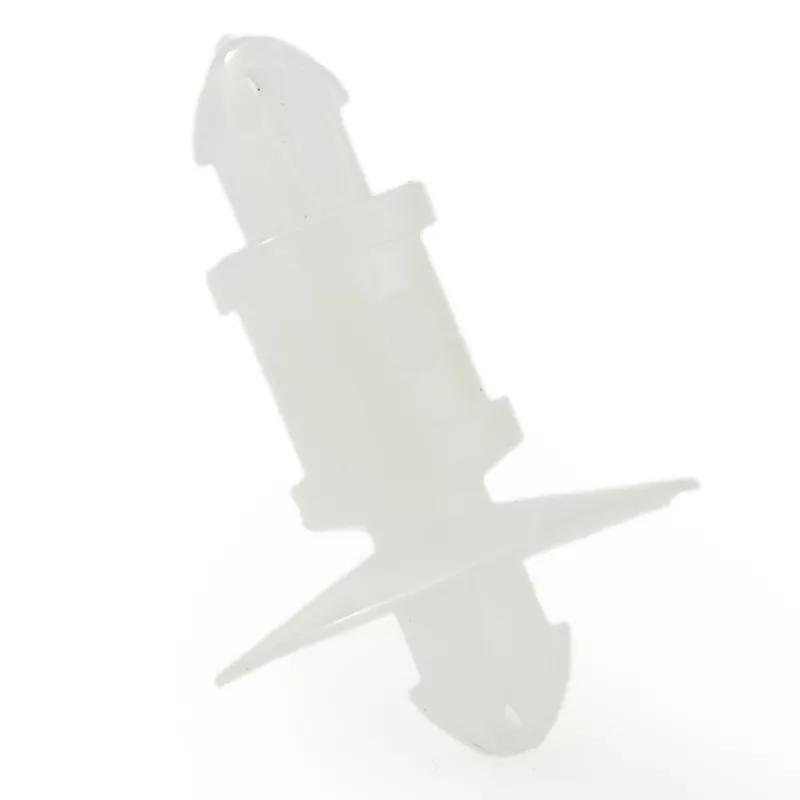

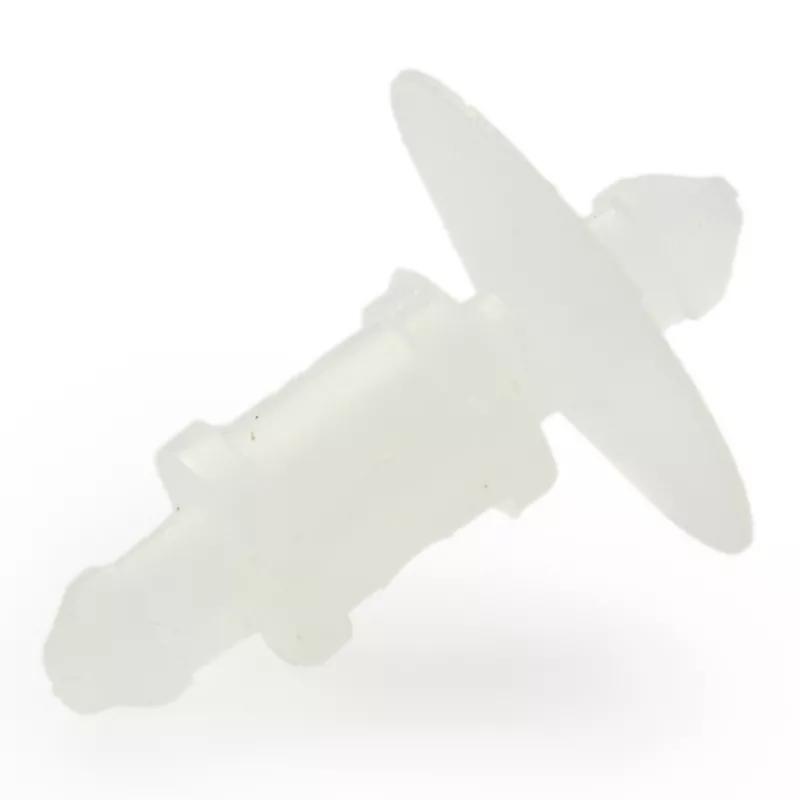

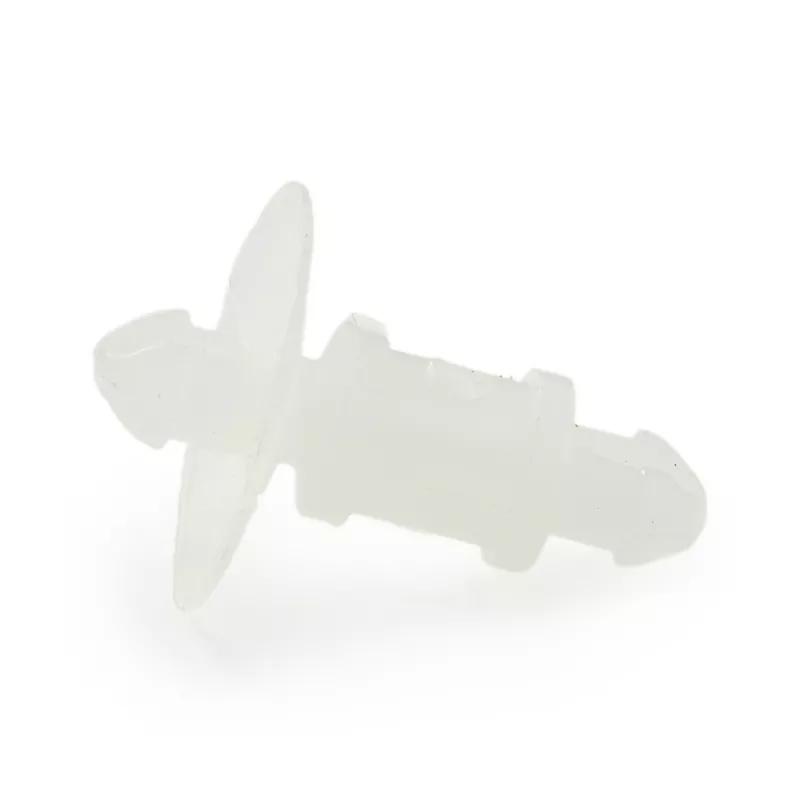

Dual Lock PCB Support 11.1 (H) Natural Nylon 6/6 (PA 6/6) UL 94 V-2

Dual locking snap-in support with a cupped base that provides added stability against lateral forces. This item is manufactured with material rated UL94 V-2.

Essentra part number

10487617

Product Attributes

Material Flammability Standard

UL94 V-2

Hole A Fix Type

Locking Teardrop Fix

Body Diameter

4.4mm

Hole Diameter A

2.5mm

Spacer Length

11.1mm

UL/CSA Description

UL E70062

Hole B Fix Type

Locking Teardrop Fix

Locking Head Height B

2.0mm

Locking Head Height A

2.0mm

Hole Diameter B

2.5mm

Colour

Natural

Minimum Operating Temperature

-40°C

Material

Nylon 6/6
