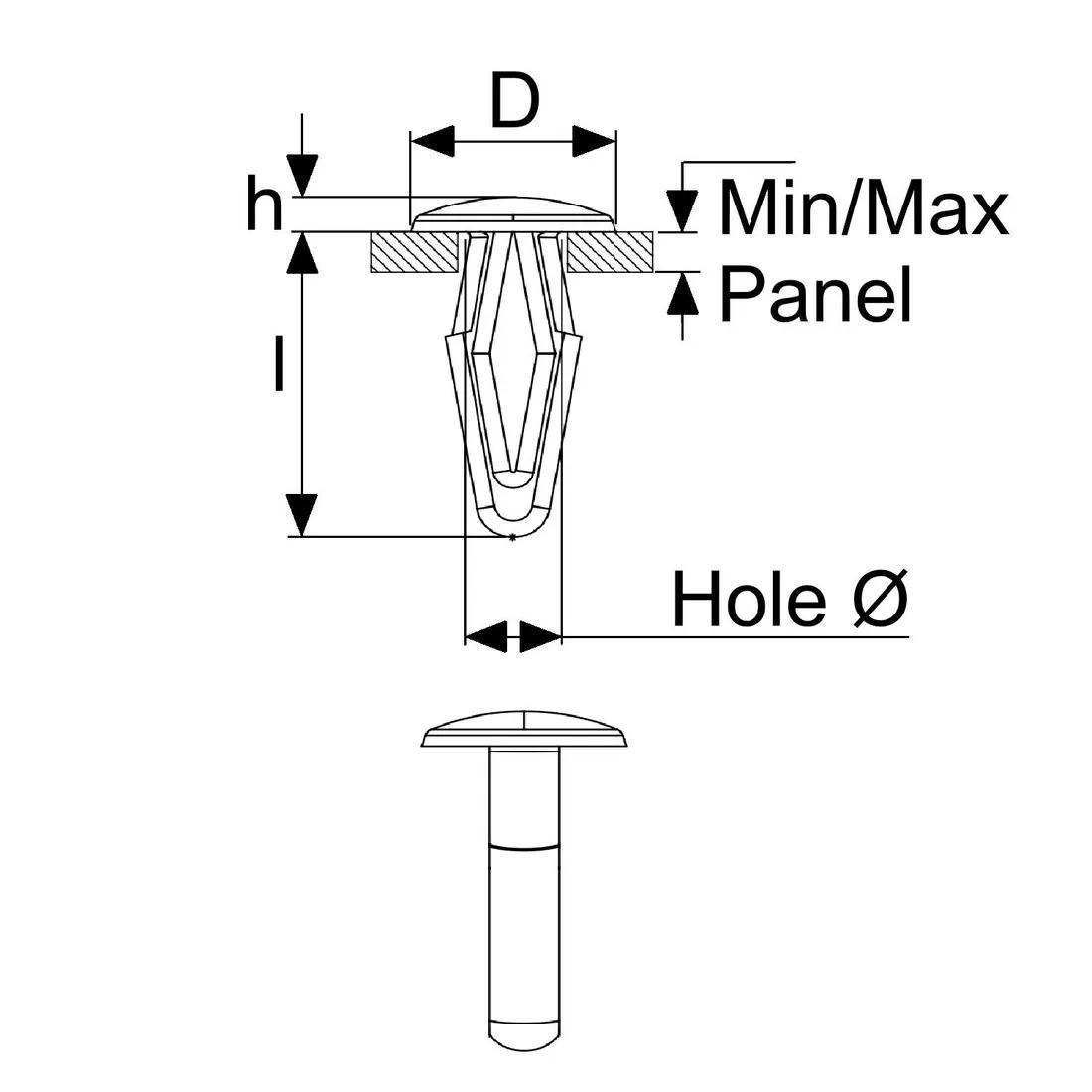

Locking Assembly Rivet 4.0 (HD) 0.8 - 2.4 (PT) Nylon 6/6 (PA 6/6) Natural
A flat head Mounting Button with an arrowhead anchor is ideal for applications where metal fasteners cannot be used, such as electrical and PCB applications. The mounting arrowhead locks securely and can be released from the underside of the board.
Essentra part number
10014608
Material Flammability Standard
UL94 V-2
Colour
Natural
Rivet Head Shape
Flat
Minimum Panel Thickness
0.031in
Locking Head Height
5.3mm
Head Width
0.391in
Overall Height
0.310in
Rivet Fitting Style
Push-In
Maximum Operating Temperature
85°C
Compatible Hole Diameter
4.0mm
Material Type
RMS-01
Maximum Hole Diameter
0.156in
Head Length
9.9mm
